Description

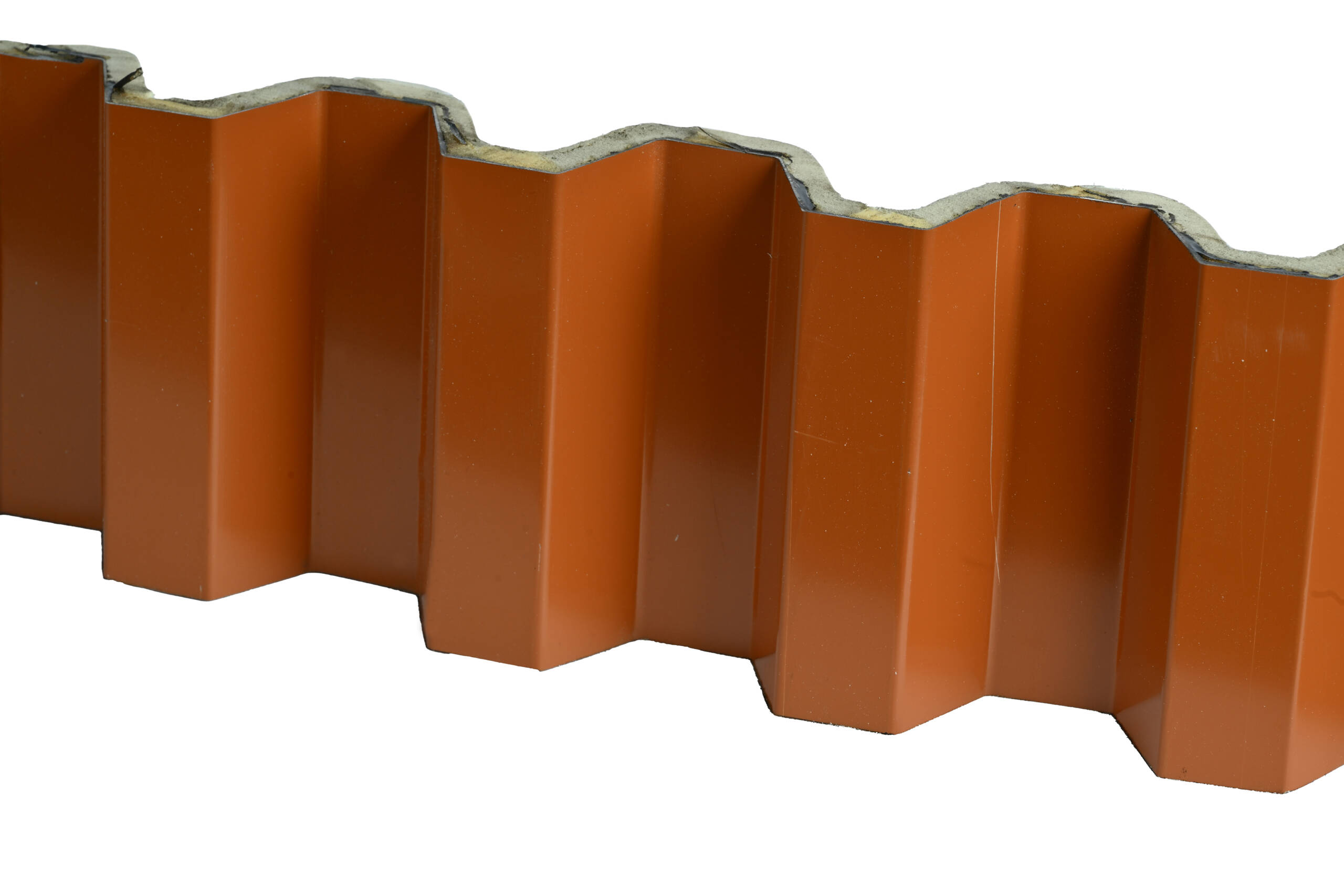

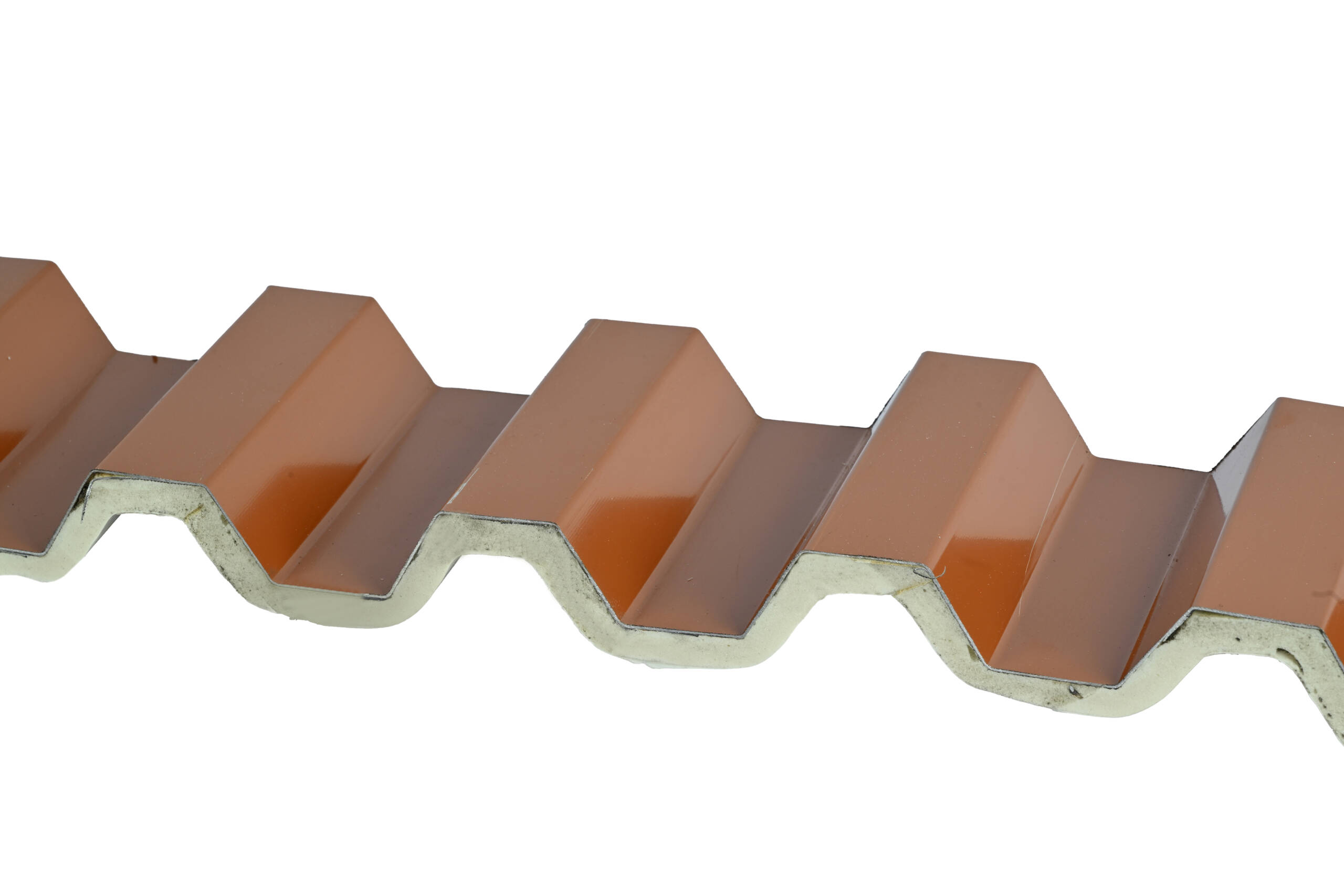

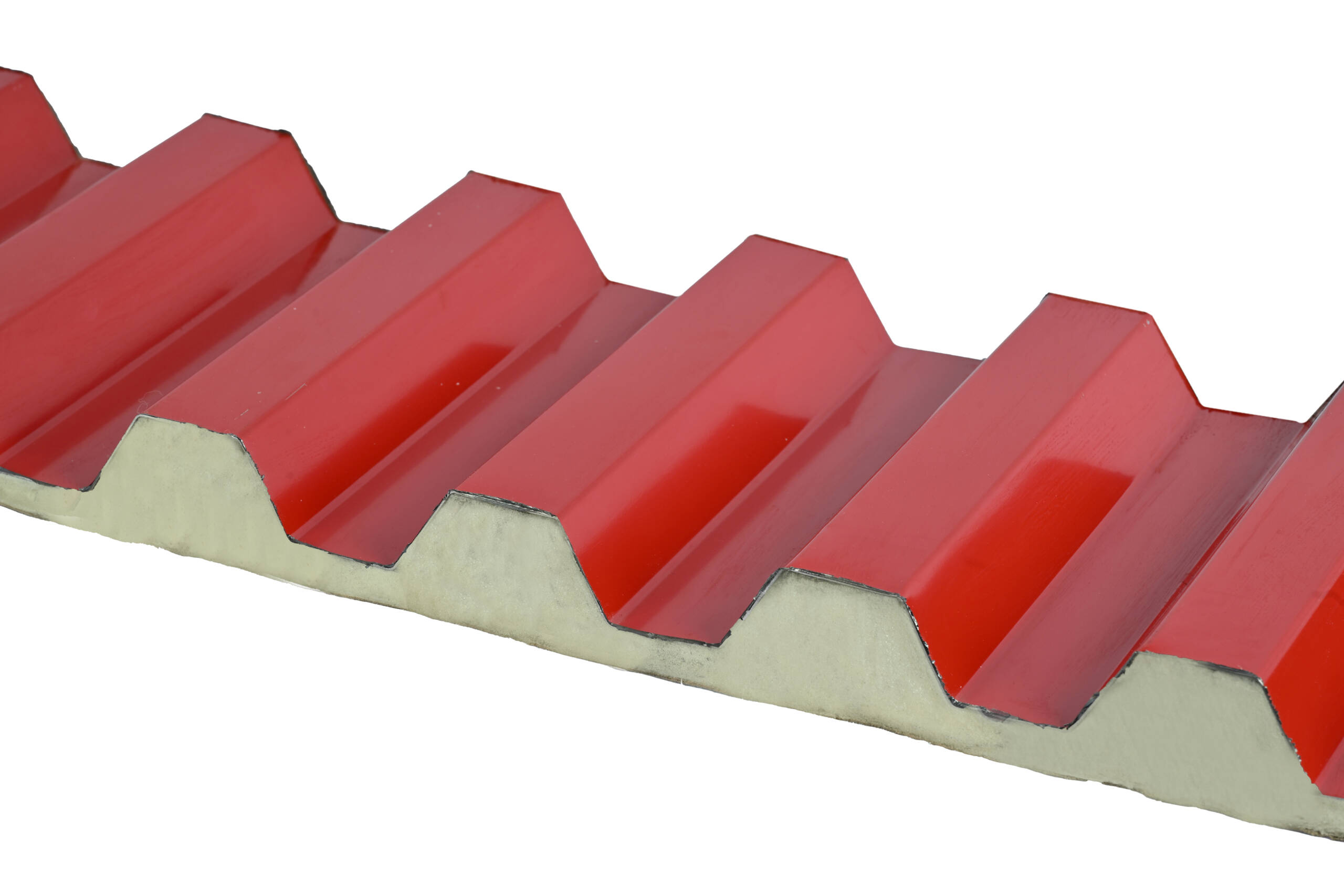

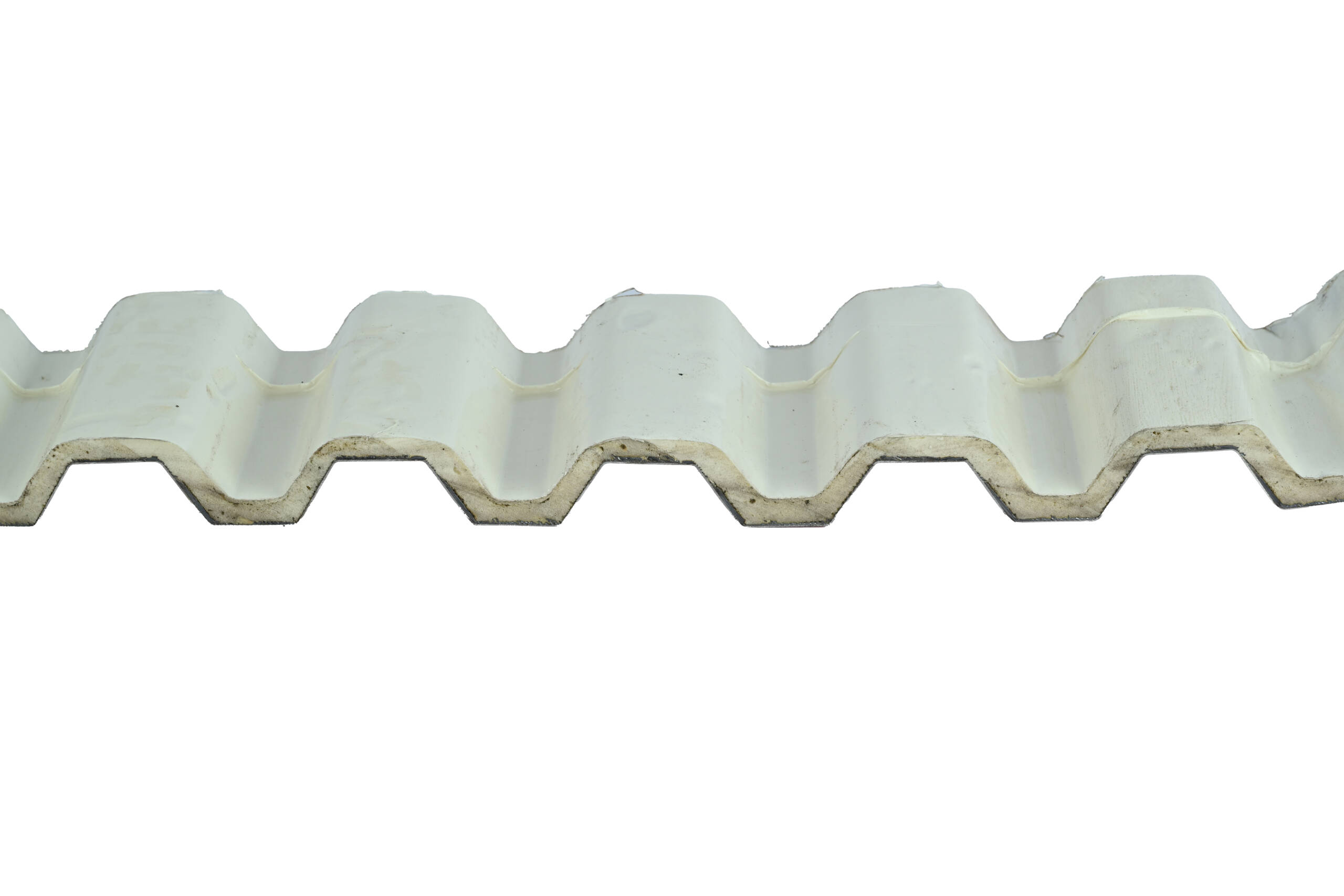

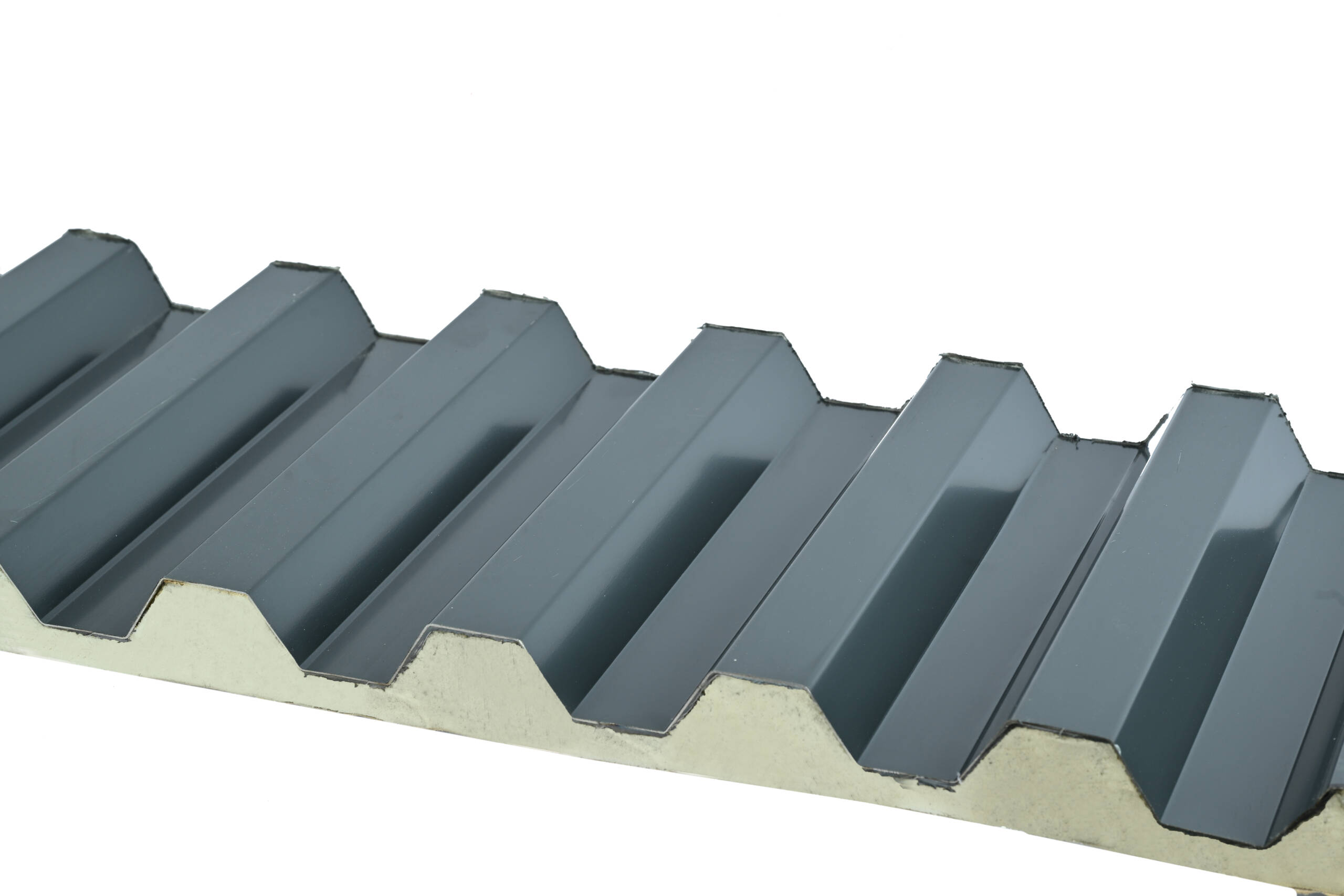

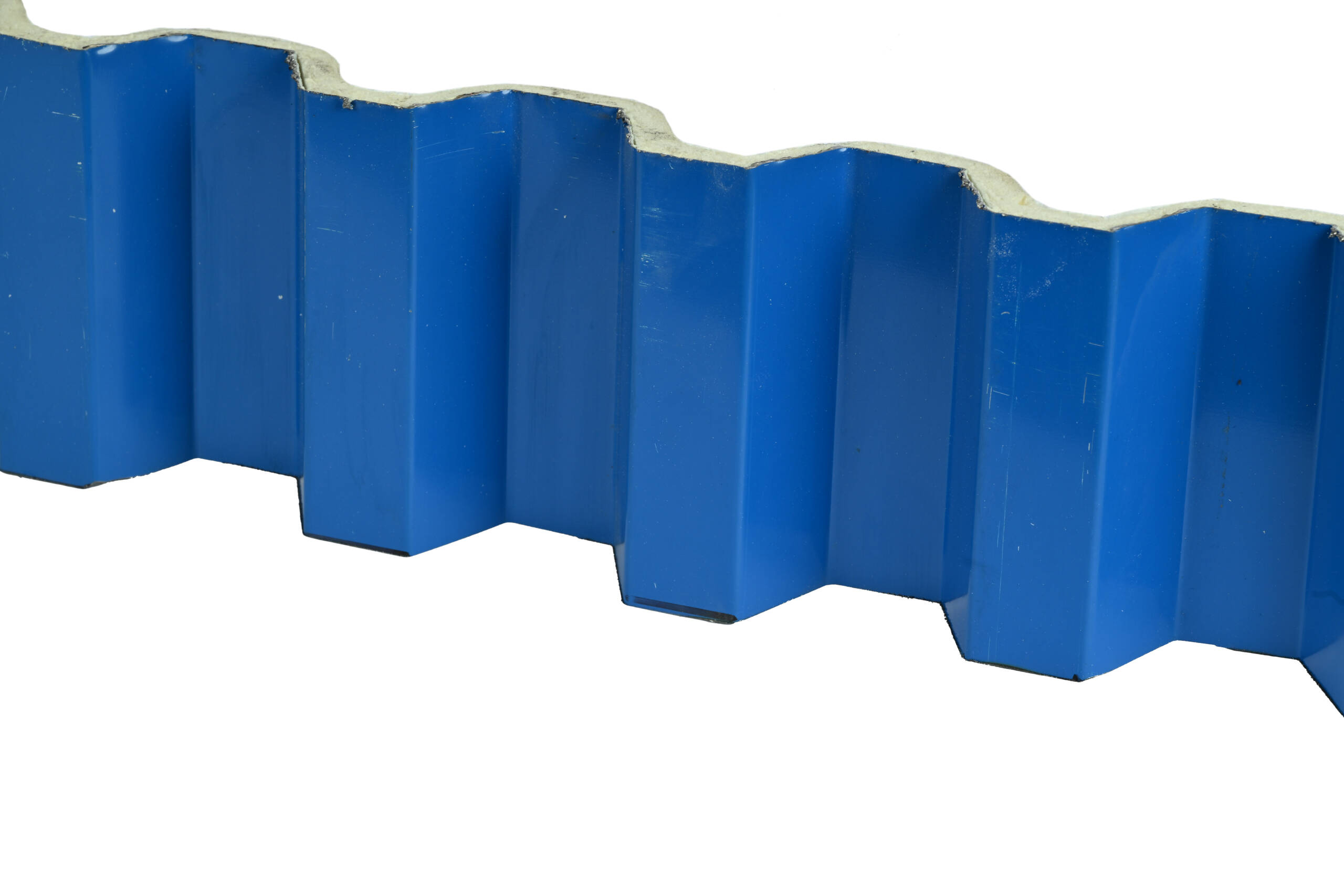

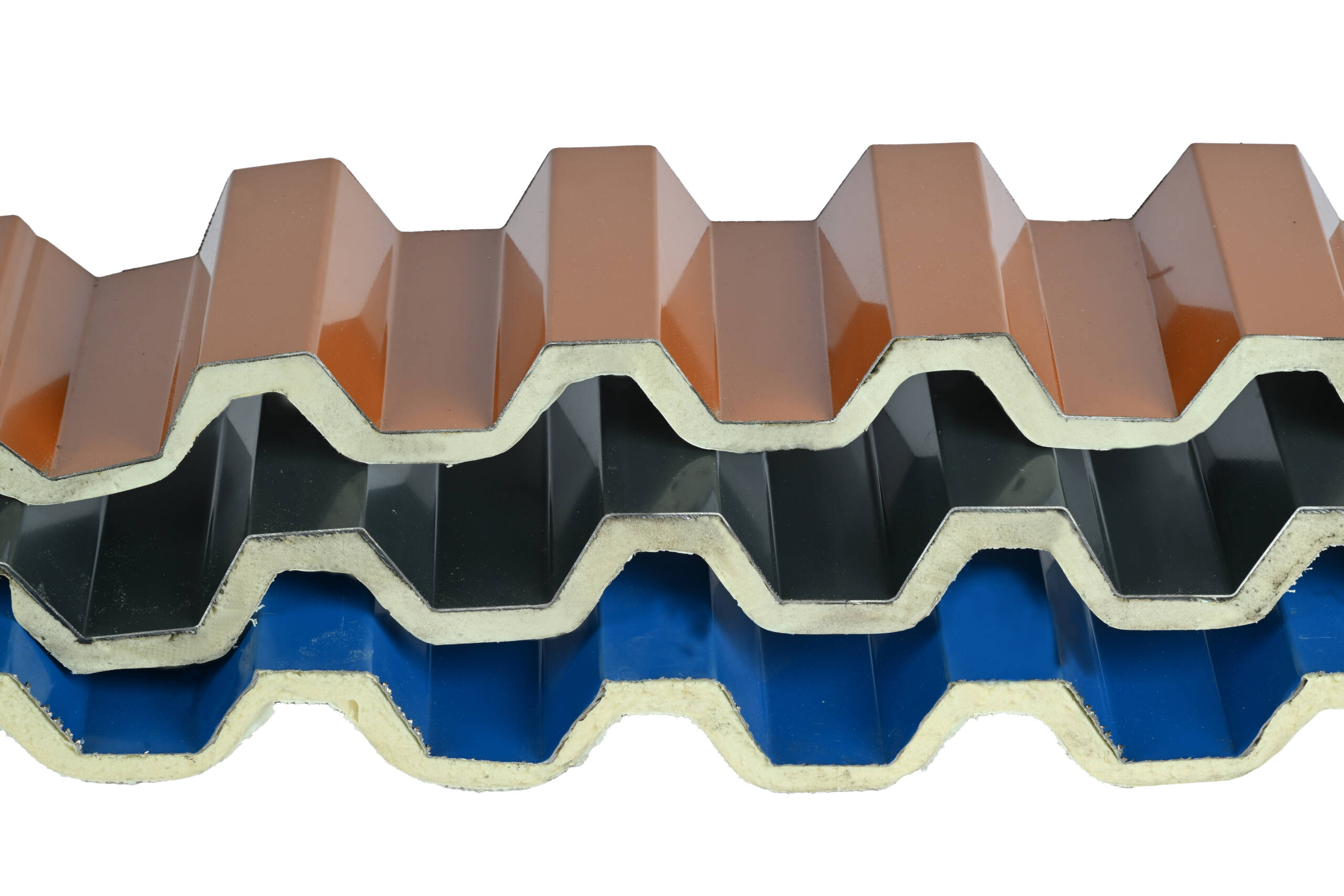

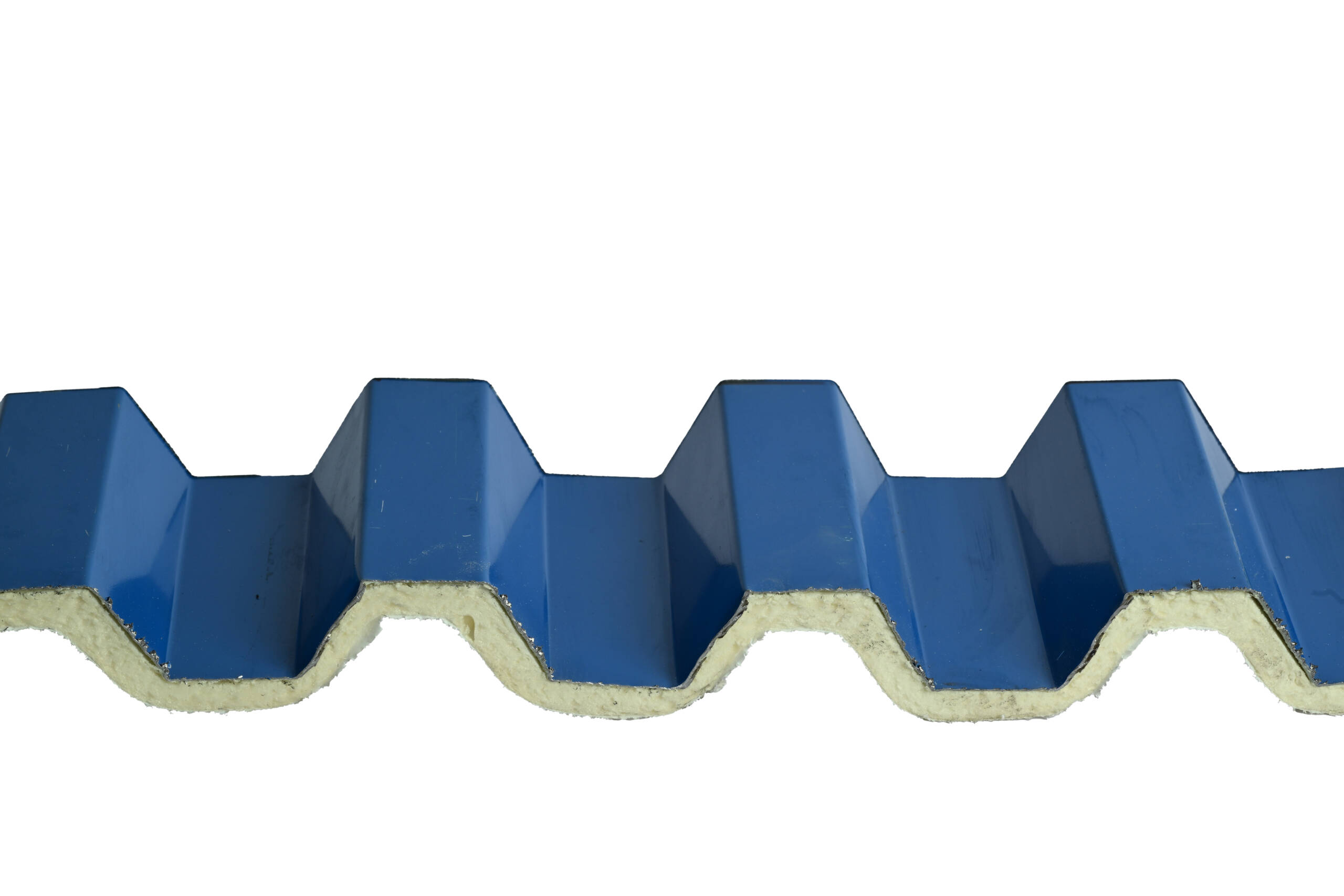

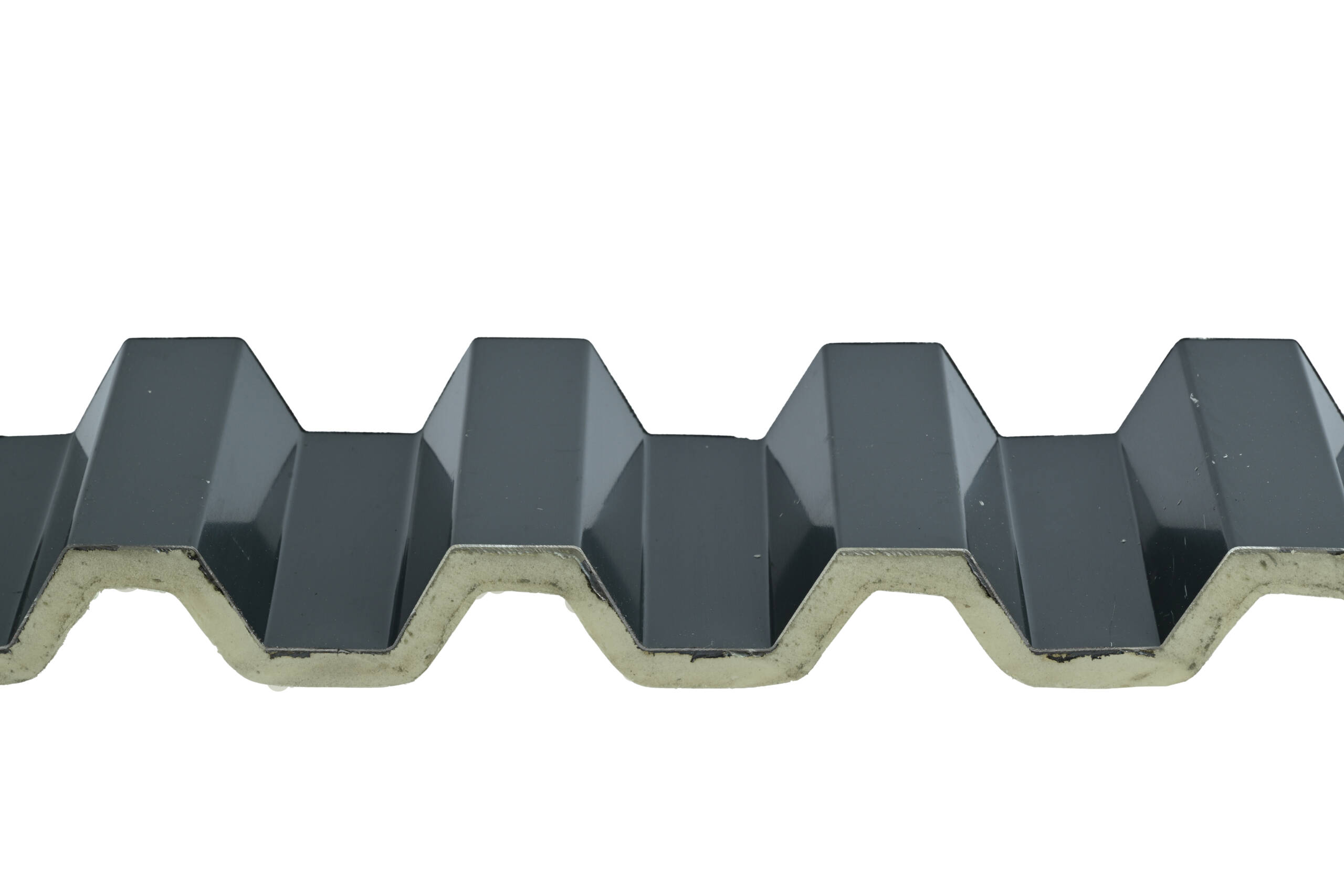

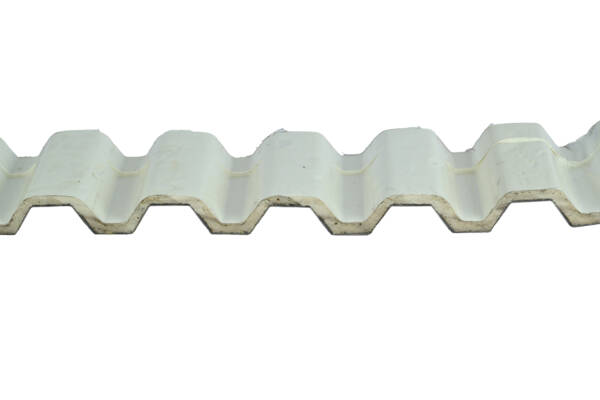

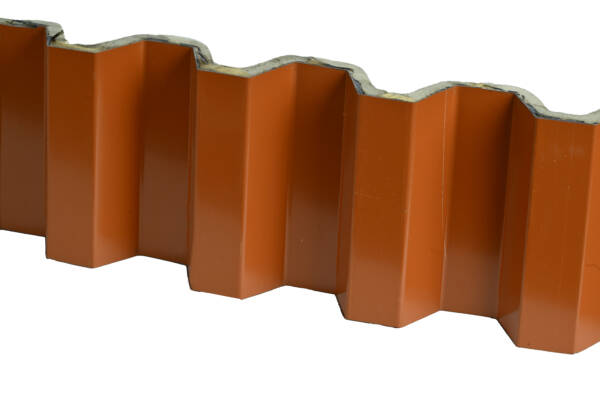

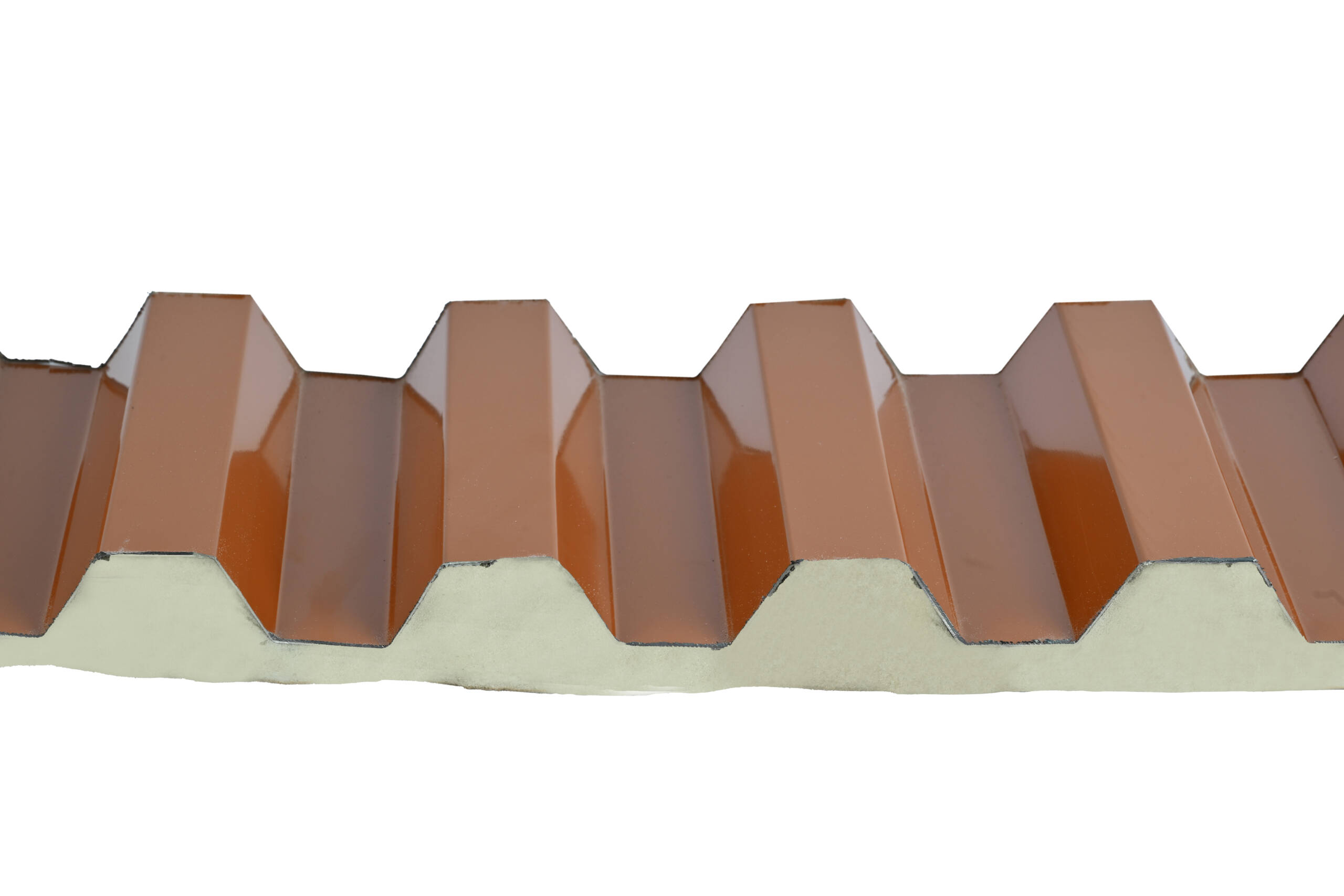

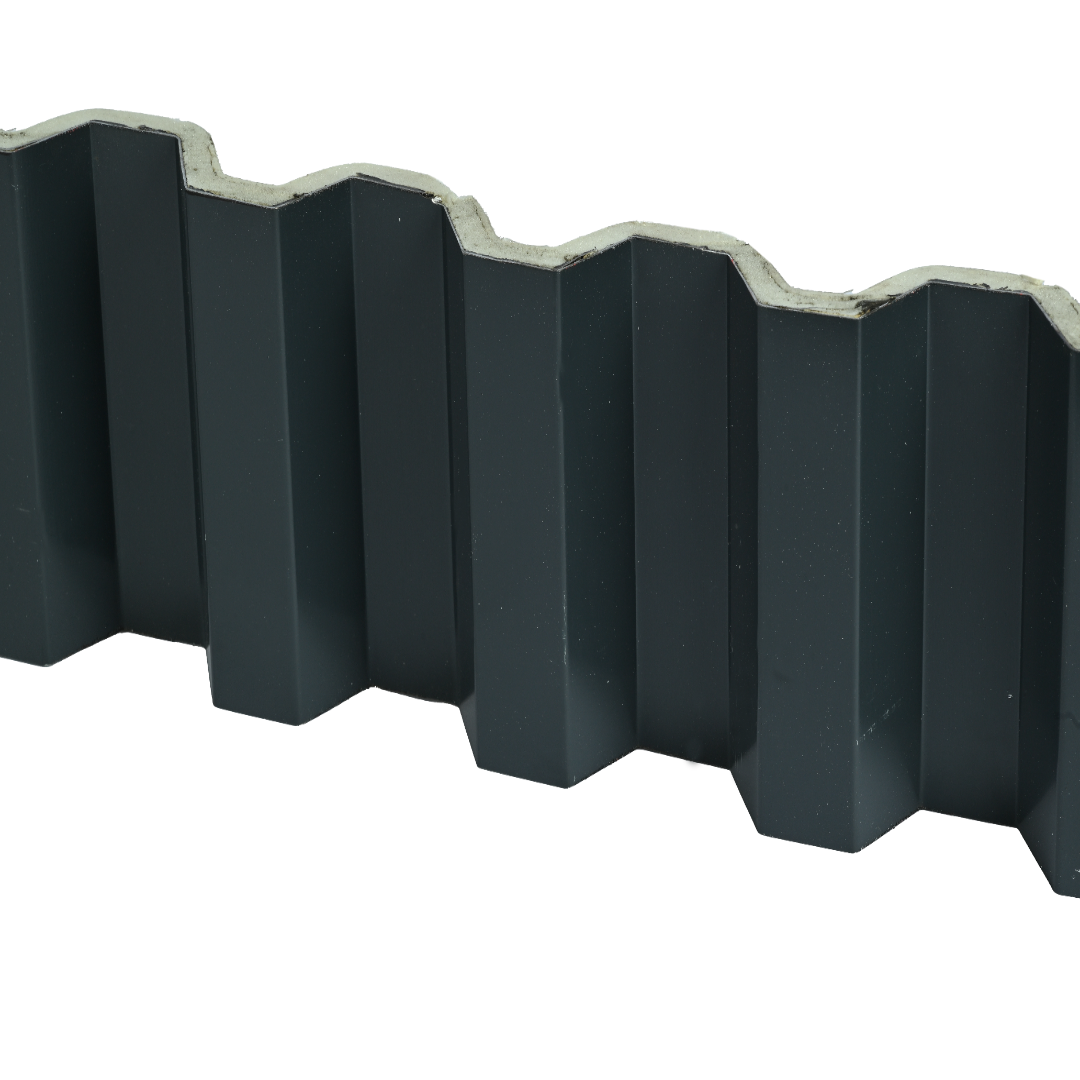

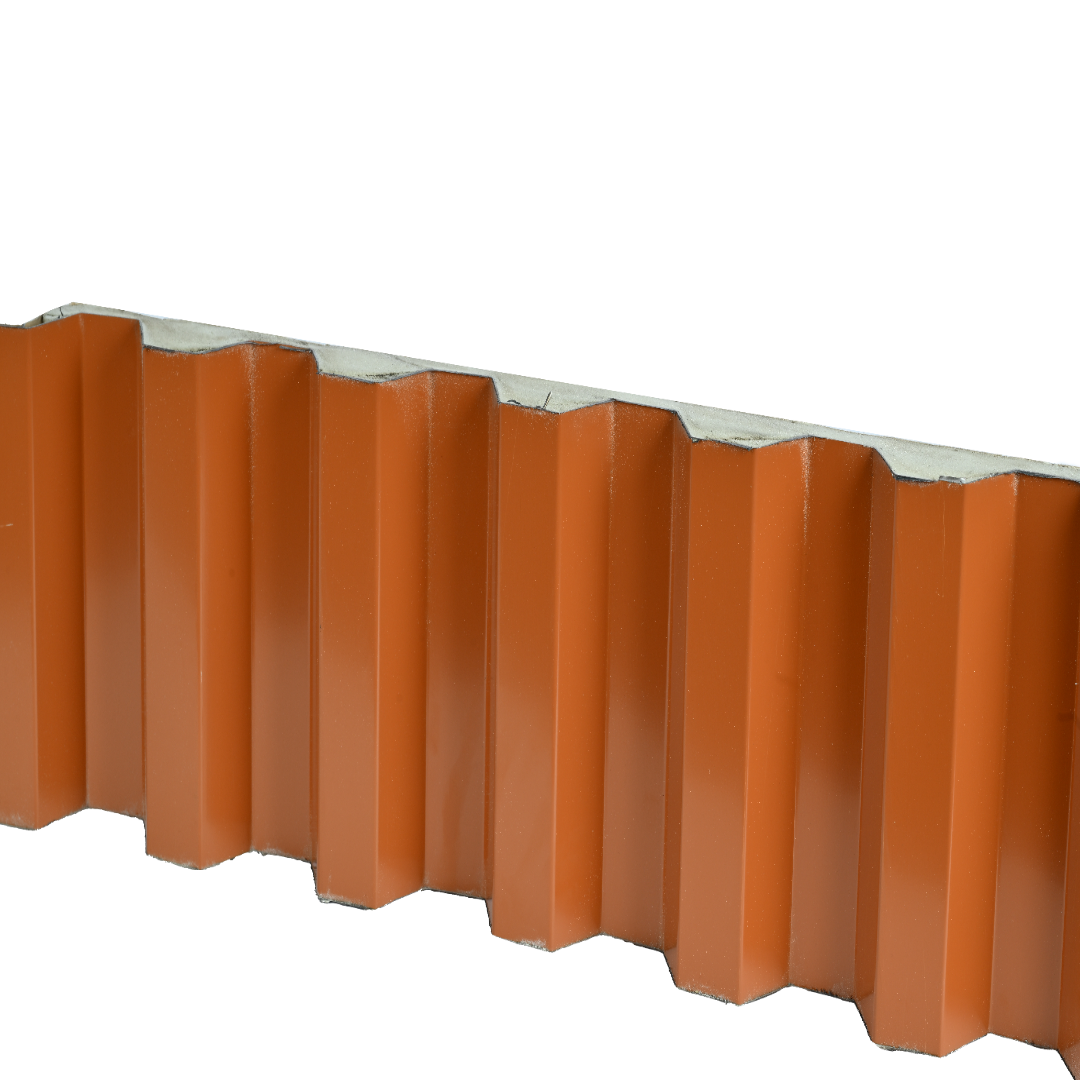

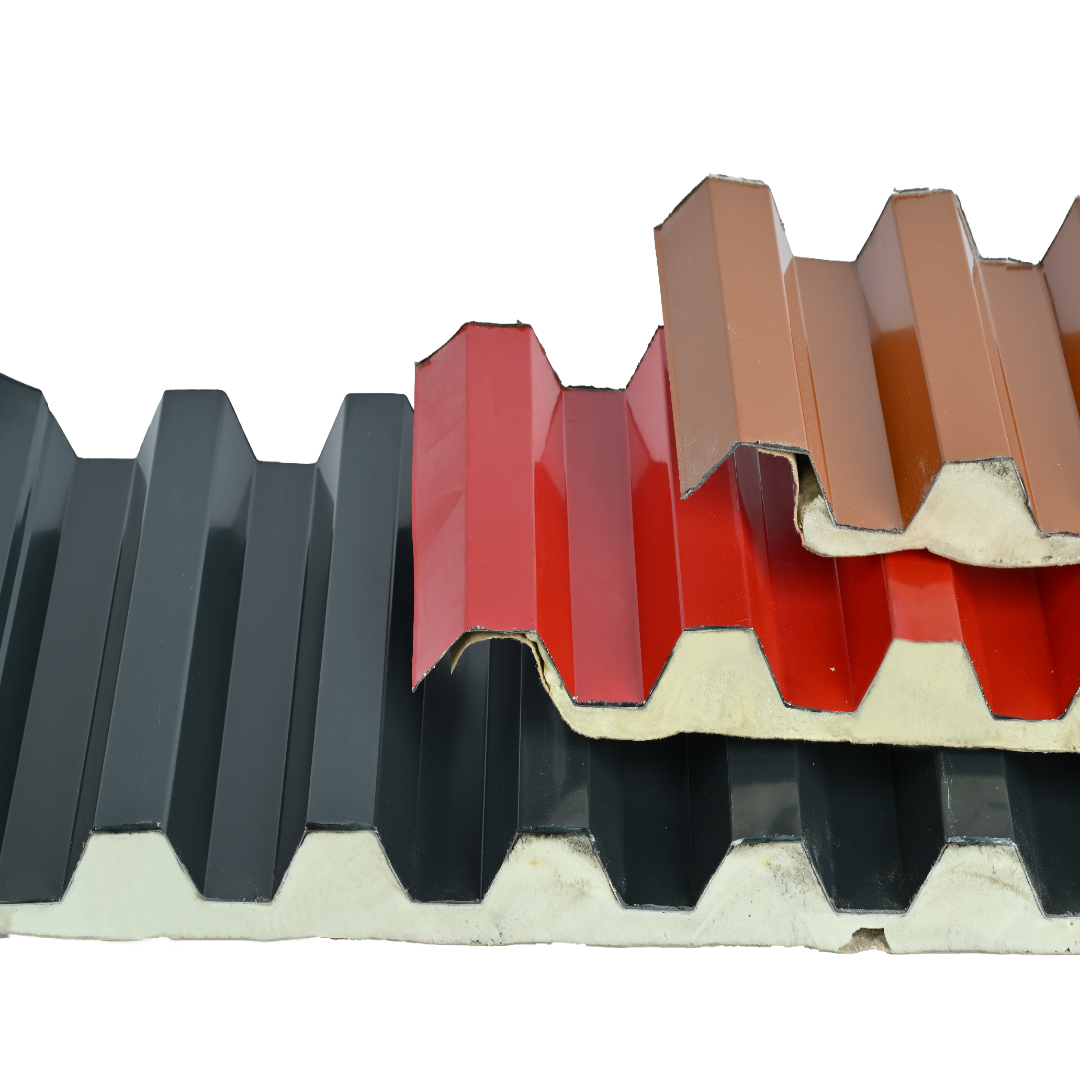

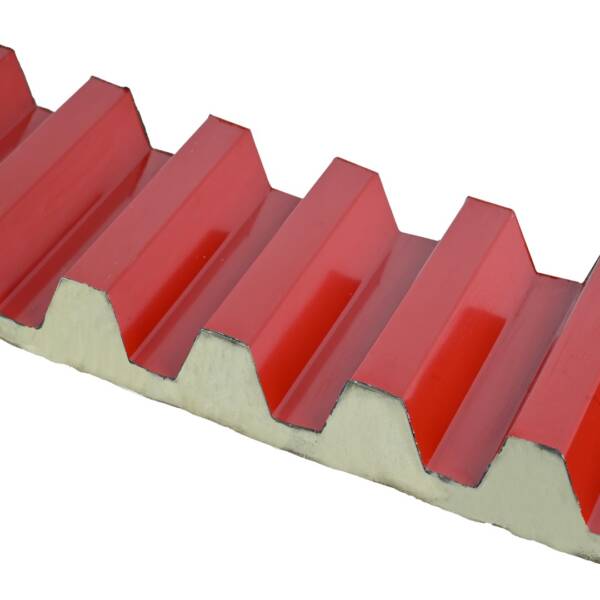

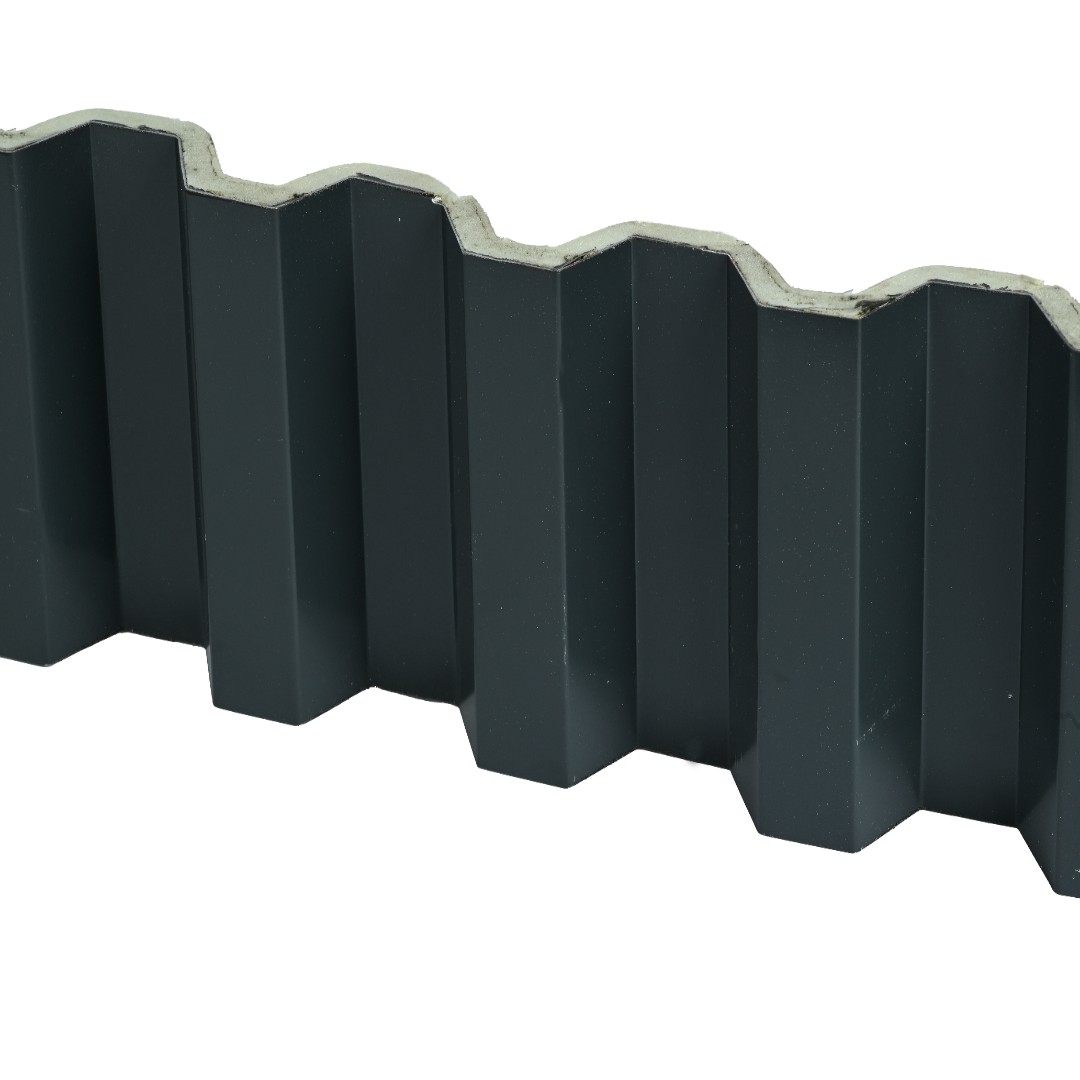

Single Panel – Steel Roofing & Wall Sheet
ERAD Steel’s Single Panel is a lightweight, durable steel sheet designed for roofing and wall cladding applications in industrial, commercial, and agricultural buildings. Manufactured from high-quality galvanized or pre-painted steel, it offers a cost-effective solution for covering large areas quickly and efficiently.
Unlike insulated sandwich panels, the Single Panel consists of a single layer of profiled steel, making it ideal for structures where insulation is not required or where ventilation and airflow are preferred. It is commonly used in warehouses, factories, hangars, carports, and boundary walls—delivering reliable performance and long-lasting protection backed by ERAD Steel’s expertise in steel solutions.
Single Panel Specifications:
| Specification | Details |
|---|---|
| Product Thickness | 0.30 Up To 0.50 Pure 10 Mm |
| Product Length | 1 m to 12.5 m |
| Product Width | 870 mm net closure + 60 mm overbinding |
| Steel Class | PPGI-DX51D |
| Polyurethane Density | 45 kg/m² |
| Polyurethane Weight | 500 gr/m² |
| Inner Coating | PE film white 50 microns, Aluminium Foil (FSK718B) |
| Aluminum Film Thickness | 0.15 mm |

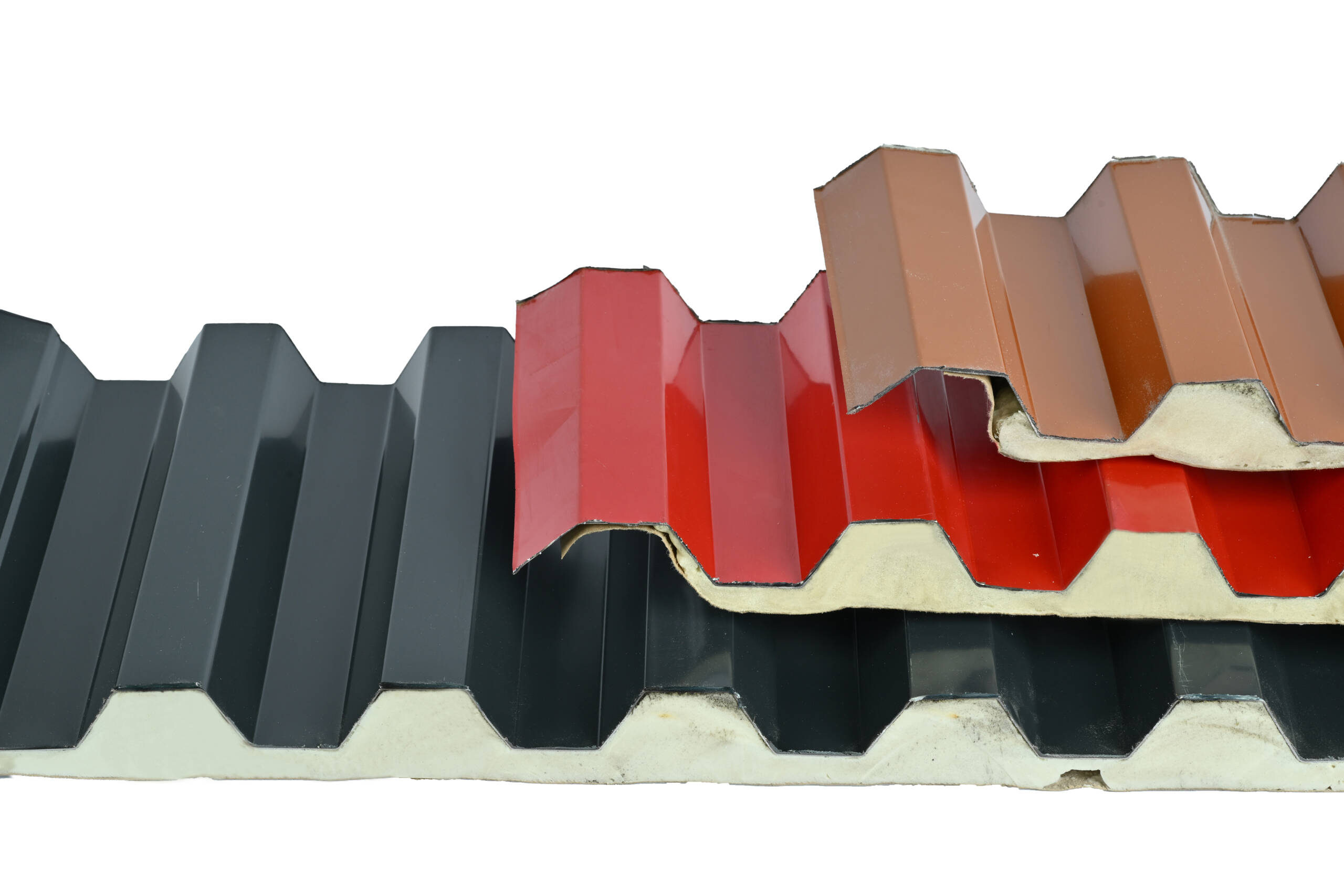

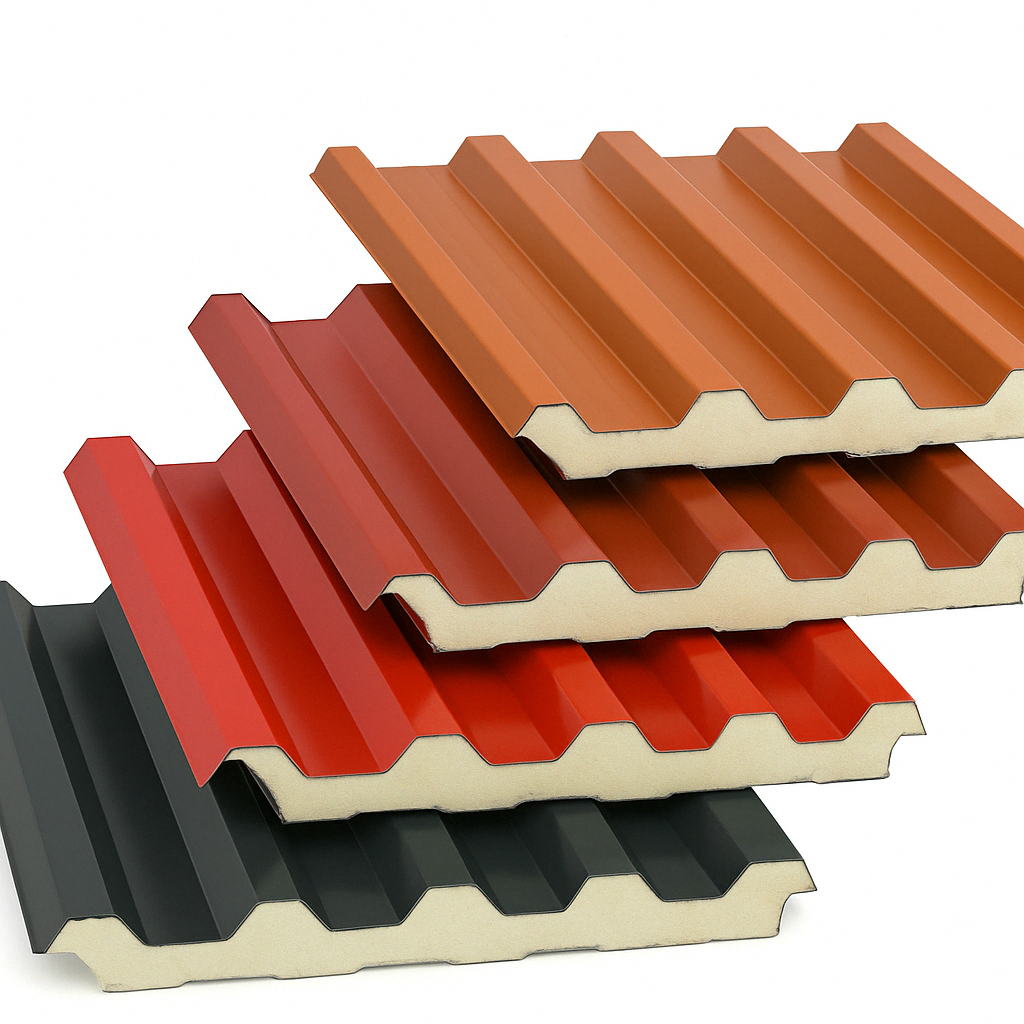

| Available Colors | RAL 9002, RAL 3020, RAL 9017, RAL 7016, RAL 8023 |

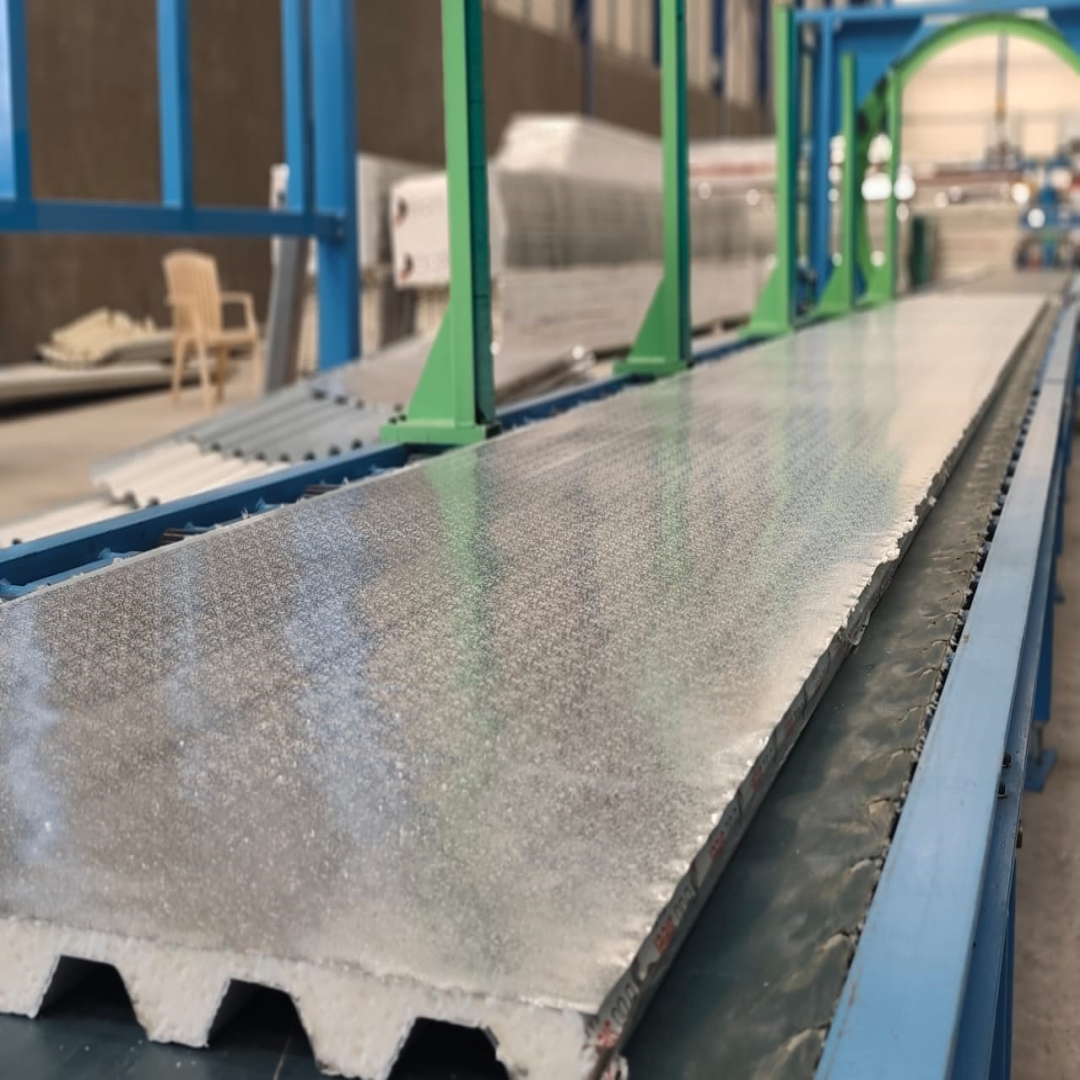

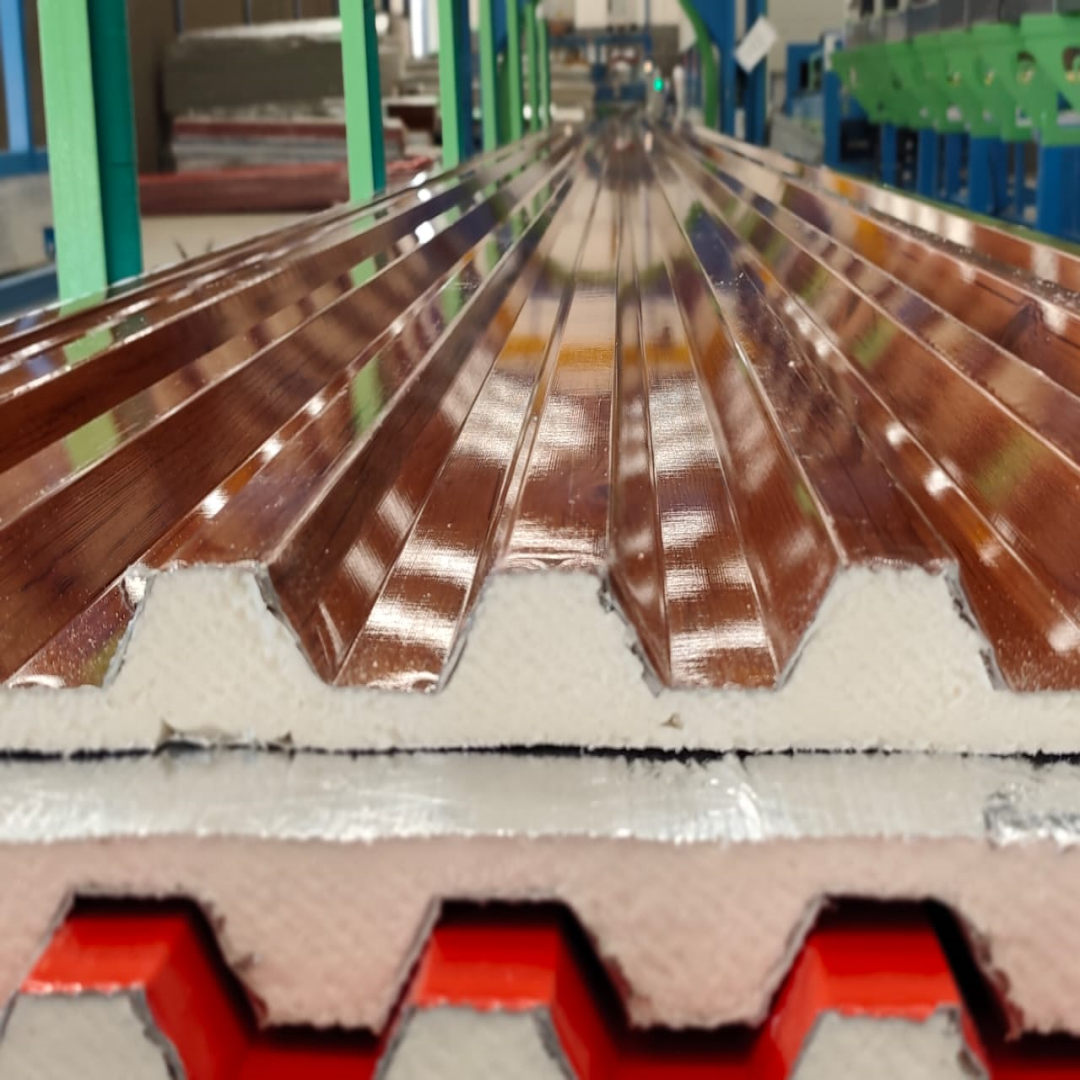

| Additional Features | Polyurethane film, embossed aluminum foil |
Product Overview:
- Materials: Polyurethane with a steel sheet outer layer, available in various colors.
- Thickness Range: 0.30 mm up to 10 mm.
- Custom Length: Can be cut to lengths between 1 m to 12.5 m.
- Ideal Use: Roofing and wall cladding applications, suitable for industrial, commercial, and agricultural buildings.
Key Features:
- Made from corrosion-resistant galvanized or pre-painted steel
- Available in a variety of profiles and thicknesses (typically 0.4mm to 1mm)
- Lightweight and easy to install
- Compatible with steel framing systems
- Custom lengths available upon request
Applications:
-
Roofing and siding for industrial and agricultural buildings
-
Internal partitions and ceilings
-
Temporary structures and sheds
-
Fencing and protective walling
Optional Add-ons:
-
Anti-condensation lining (on request)
-
Color options for exterior aesthetics
-
Matching flashing and accessories
