Description
H20 Beams
Strong. Lightweight. Reliable.
H20 Beams are engineered timber beams designed for formwork systems, offering exceptional load-bearing strength with minimal weight. They’re ideal for concrete slabs, walls, and other formwork applications, combining durability with ease of handling.
Key Features
-
Engineered Wooden Construction: Made from solid spruce flanges and a laminated 3-ply core for maximum strength and stability.
-

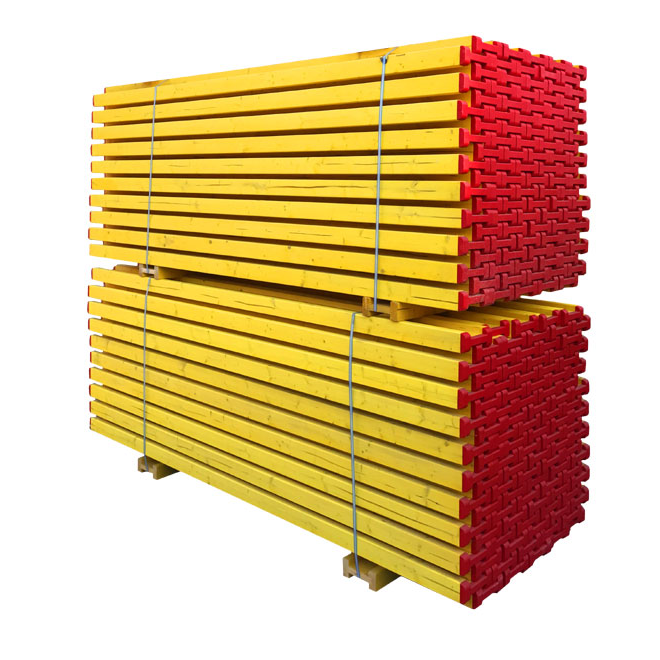

Protected Ends: Features plastic or reinforced caps to prevent chipping and damage during handling.
-
Water-Resistant Finish: Treated with a water-repellent resin to resist moisture and prevent deformation.
-
Standard Dimensions: Common profile is 200 mm in height, 80 mm in flange width, and 28–30 mm web thickness.
Available Sizes & Options
-
Lengths: Available from ~1.8 m up to ~5.9 m, depending on manufacturer.
-
Protective Caps: Optional plastic or steel end caps for extended durability.
-
Variants: Standard H20 and “H20+” versions with enhanced resistance.
-
Custom Finishes: Resin-treated surfaces for weather resistance, custom printing, or color-coded ends available.
Key Advantages
-
High Load Capacity: Designed to safely support heavy concrete loads in formwork systems.
-
Lightweight Handling: Easier to transport and maneuver on site compared to traditional solid timber components.
-
Durable & Reusable: Engineered for multiple reuse cycles (20–30+ pours), reducing long-term costs.
-
Dimensionally Stable: Resistant to warping or twisting due to its engineered, calibrated construction.
-
Easy to Cut & Adapt: Can be trimmed to custom lengths on the job, offering flexibility.
Key Applications
-

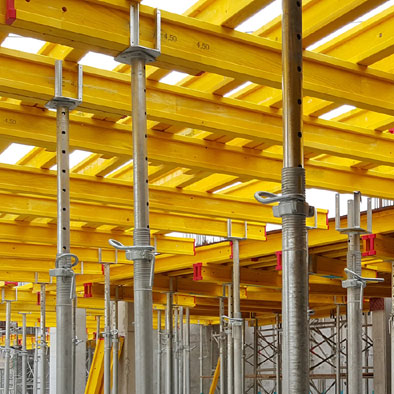

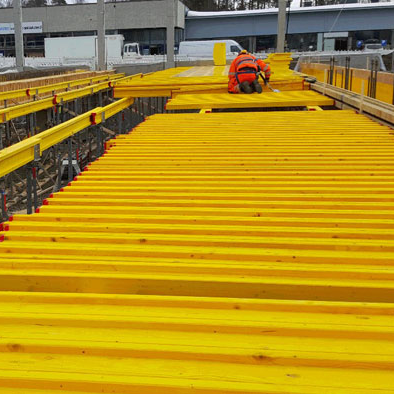

Slab Formwork: Primary beams for supporting slab panels.
-
Wall Formwork: Structural support for vertical formwork.
-
Bridge & Tunnel Construction: High load capacity makes them suitable for infrastructure projects.
-
Shoring & Scaffolding: Paired with props and accessories for temporary supports.
-
Industrial & Residential Projects: Efficient, reusable beam option for high-cycle construction demands.
Why Choose Our H20 Beams?
-
Manufactured to European quality standards (e.g., EN 13377) for strength and reliability.
-
Resin-treated wood provides protection from moisture, increasing lifespan.
-
Cost-effective: High reuse cycles reduce formwork cost per use.
-
Safe & efficient on-site: Lightweight yet robust, with protective end caps to avoid damage.
-
Sustainable sourcing: Made from renewable timber and engineered for reuse.
📲 Interested in our H20 Beams ?
Chat directly with our team for pricing and details:
