Description

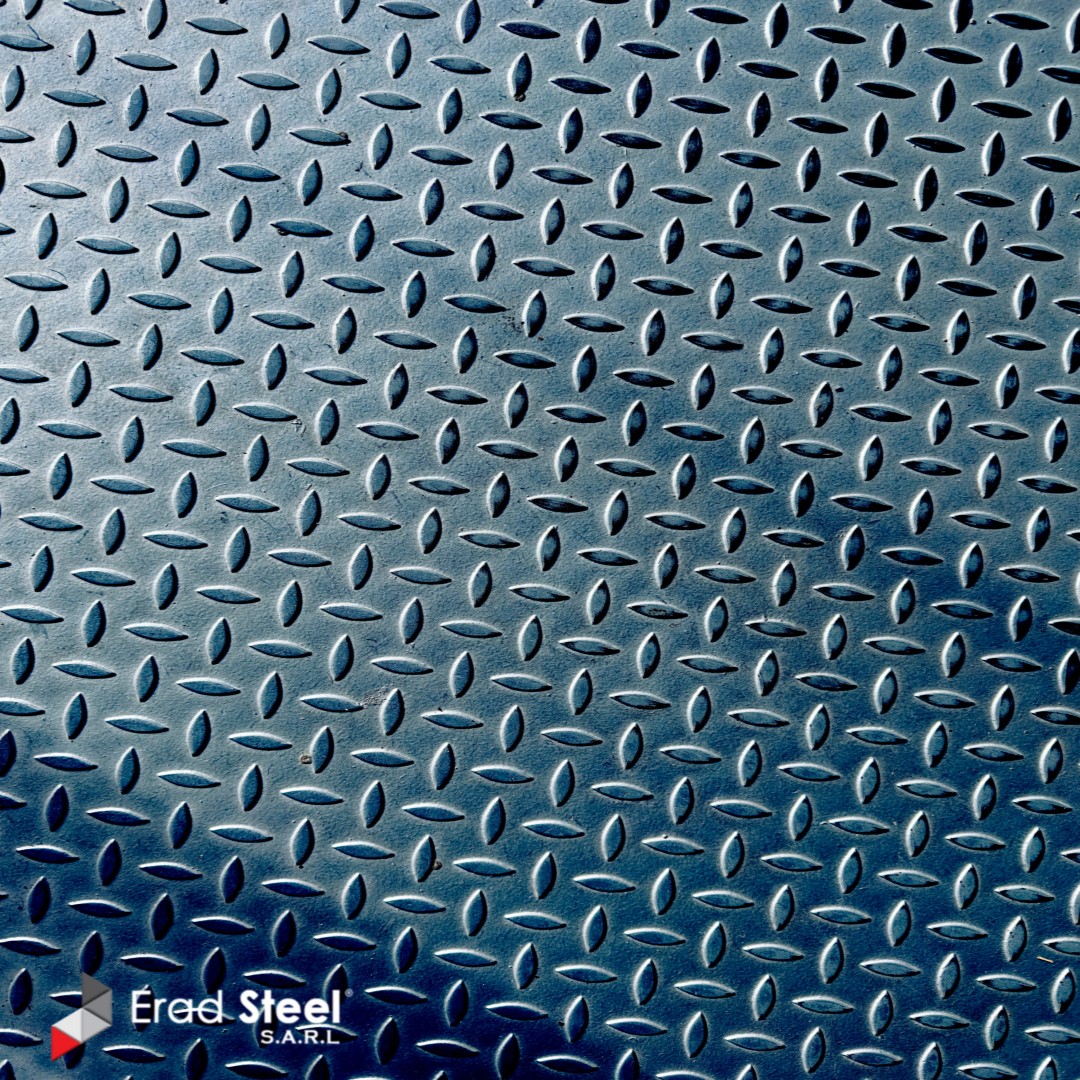

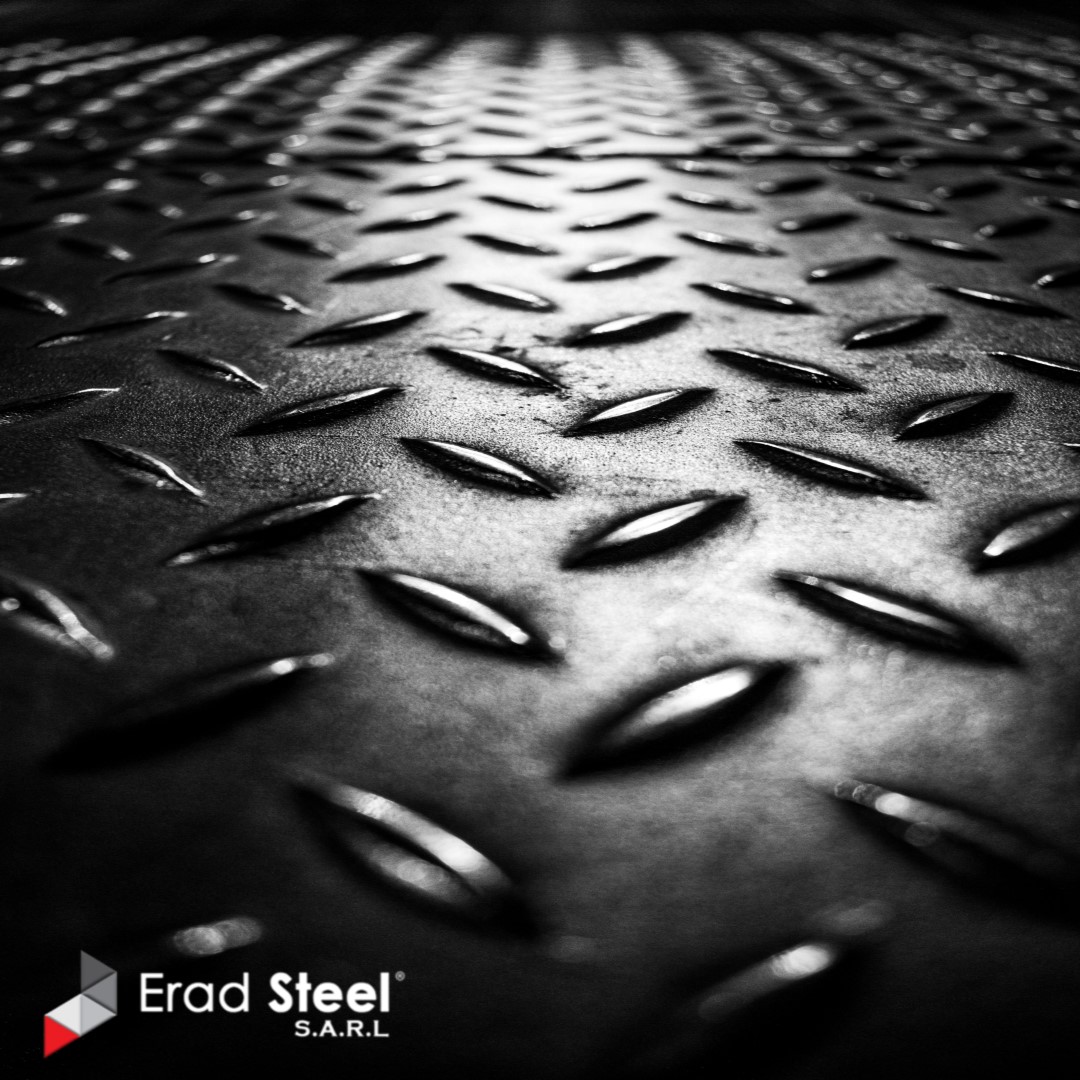

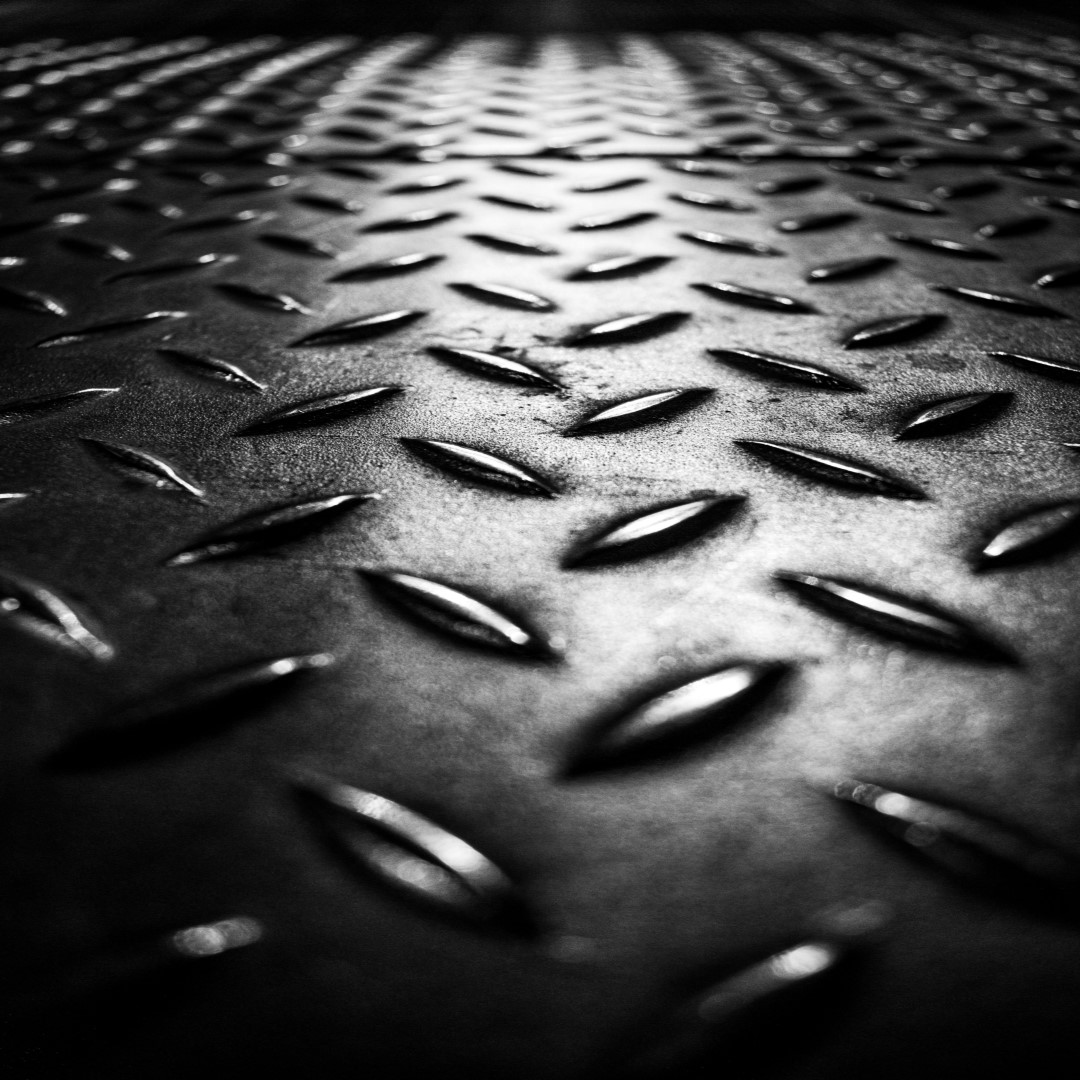

Checker Plate (Tread Plate / Diamond Plate)
Base Material
-
Substrate: Steel
-
Alloy Type: Mild Steel
Properties:
-
Slip Resistance: The raised diamond or checkered pattern provides excellent traction, making it ideal for walkways, stair treads, ramps, and industrial floors.
-
Durability: Mild steel checker plates offer high strength and exceptional resistance to heavy impact, abrasion, and continuous wear.
-
Corrosion Resistance: While mild steel is not inherently corrosion-resistant, it can be galvanized or coated to protect it from rust and moisture.
Manufacturing Process
-
Material Selection: Mild steel is selected for its strength, formability, and cost efficiency.
-
Forming: The steel sheet is passed through rollers that emboss the raised diamond or checkered pattern.
-
Cutting & Finishing: Sheets are cut to customer-specified lengths and widths.
-
Surface Treatment (Optional): A protective layer—such as galvanization or coating—can be applied to improve corrosion resistance.
Common Grades of Checker Plate
| Material | Features | Typical Use |
|---|---|---|
| Mild Steel | Strong, cost-effective, easy to weld and fabricate | Industrial flooring, platforms, walkways, loading docks |
Typical Specifications
-
Thickness: 1.5 – 12 mm
-
Width: 1000 – 2000 mm (standard range)
-
Length: Up to 6 meters (depending on customer requirements)
-

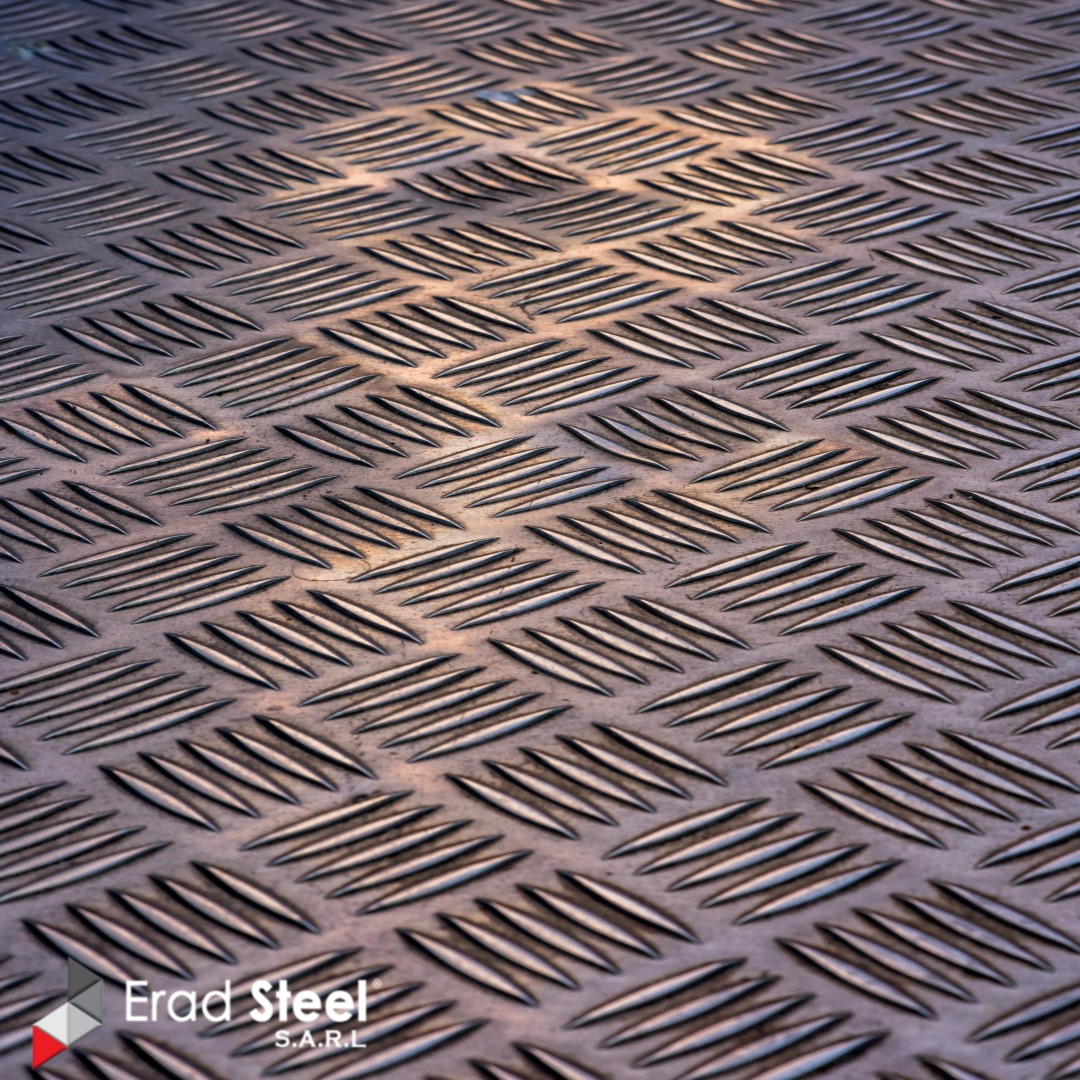

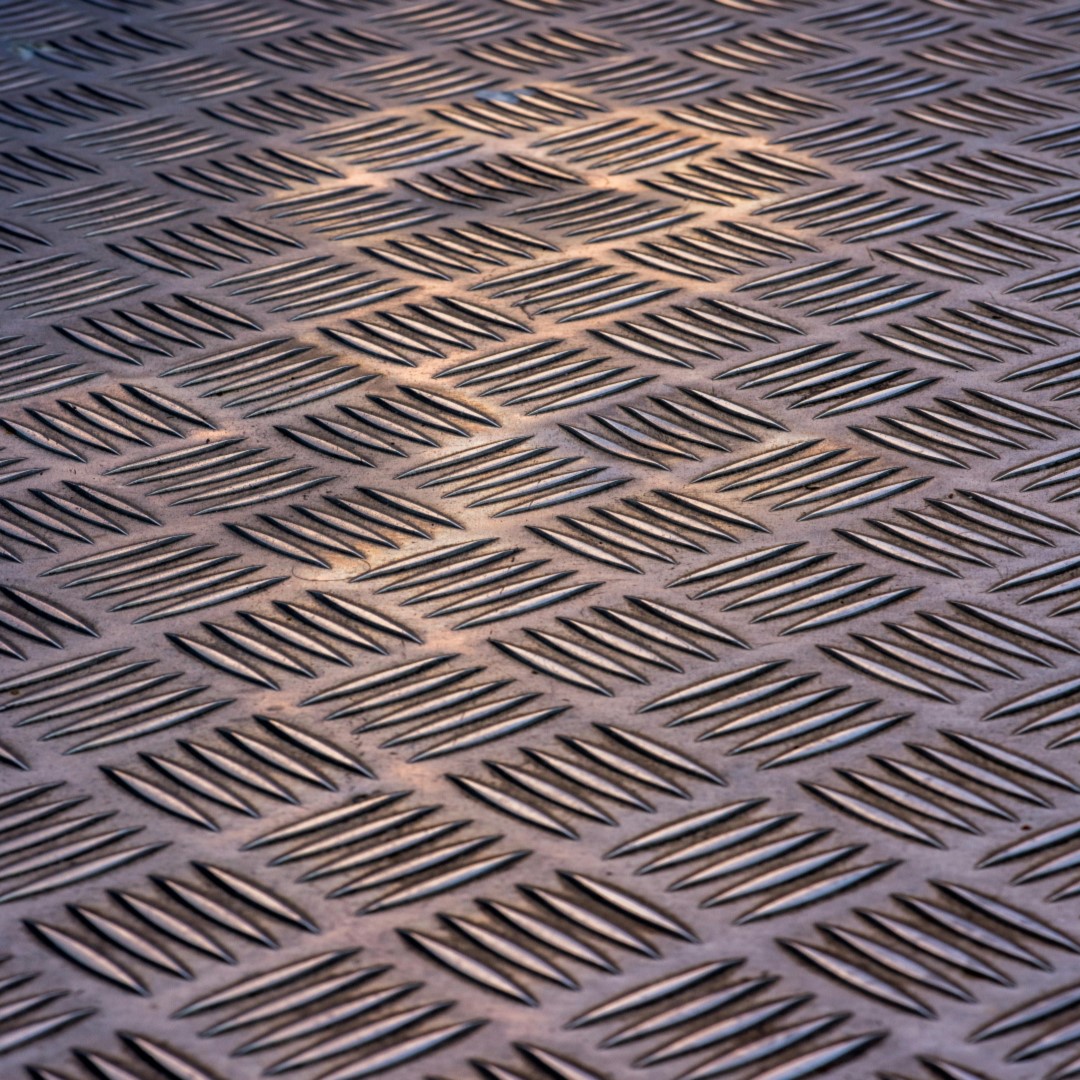

Pattern Type: Diamond, 5-bar, or other customized patterns
Advantages
-
Slip Resistance: The raised pattern provides excellent traction, reducing slip hazards.
-
Strength and Durability: Offers long-lasting protection against wear and impact.
-
Corrosion Resistance: Making it suitable for outdoor and high-moisture environments.
-
Versatile Applications: Can be used in many sectors, from construction to transportation.
Applications
-
Construction: Walkways, stair treads, platforms, and ramps.
-
Industrial: Flooring for heavy-duty equipment areas, warehouses, loading docks, and machinery.
-
Automotive and Transport: Vehicle steps, truck beds, trailers, and floors in vehicles.
-
Decorative: Used in interior designs, countertops, and high-end architecture.
Why Choose ERAD Steel?
- Reliable quality and strong steel structure.
- Fast delivery and professional customer support.
- Trusted by clients across Africa, the EU, and the MENA region.
📲 Interested in our Checker Plate ?
Chat directly with our team for pricing and details:
